Features & Benefits:
- 8,000 lb. Capacity
- Hobbyist Grade Lift – Not intended for Commercial Use
- Baseplate, Open-Top Style Lift
- 2-Stage front arms/3-Stage rear arms
- Automatic Arm Restraints
- Single Point Lock Release
- Double Lock Safety System
- Dual Hydraulic Chain-Drive Cylinders
- Powder Coat Finish
- Free 12 Piece Truck Adapter Set
- Mounting Hardware Included
- Shipping Weight: 1,300 lbs.
- 5 Year Structural Warranty/2 Year Hydraulic Warranty
- This part number Will Call only

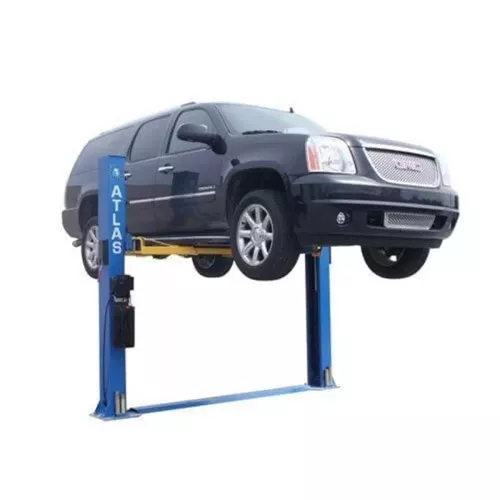

The Atlas® BP8000 is a base-plate two-post lift designed for low ceiling garages. The total column height of 108 inches or 9 feet allows this lift to be installed in almost any professional or home garage with a ceiling as low as 9 feet 3 inches. The BP8000 also has many popular features found on larger more expensive lifts, including a single point lock release and Super-Symmetric arms.
Atlas® ATTD-BP8000 Specifications:
- Capacity: 8000 lbs
- Overall Height: 108″ (9′)
- Overall Floor Width: 132″ (11′)
- Outside Columns: 124″ (10′ 4″)
- Inside Column Width: 109 1/8″ (9′ 1 1/8″)
- Drive Thru: 99″
- Max Lift Height w/o Adapters: 76 3/4″
- Max Lift height w/ Adapters: 87 3/4″
- Minimum Arm Height: 4″
- Column Size: 7 1/4″ x 11″
- Base of Column: 17 1/2″ x 17 3/4″
- Column Steel Thickness: 6mm
- Arm Steel Thickness: 6mm
- Motor/Electrical Requirement: 220volt Single Phase, 30 amp breaker required
- Oil Requirement: 3-5 Gallons AW32 or AW46 (NOT INCLUDED)
- Shipping Weight: 1300 lbs
- Adapter Heights: 4 Each 2″, 3″, 6″
- Arm Hole/Adapter Peg Size: 1.5″
