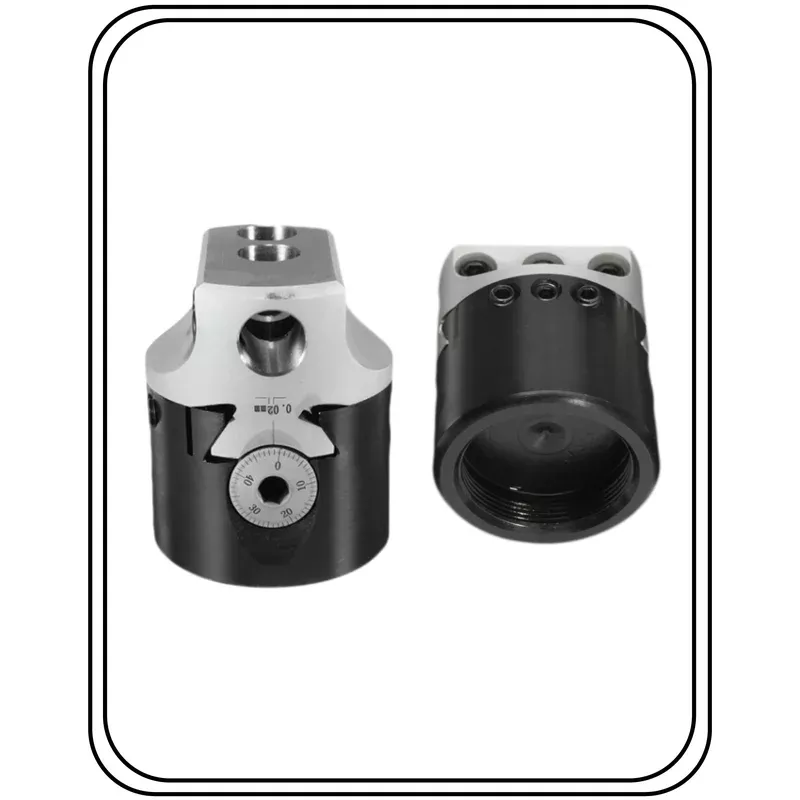

Boring Head 50 mm pack of 1
NEW AND IMPROVED WITH THE BEST QUALITY
C-type Boring head with 12 mm Boring Tool
1 ccmt tool comes with a 50mm boring head; the insert you need to purchase separately
CCMT09T304/08
Graduation 1 Div. = .01 and .02 mm typeBoring Hole 12 mmOffset – 15mmBoring Capacity – 8 mm to 150 mmBack Thread – 1.5″ x 18 TPI
Can be used with different Shanks R8,MT2,MT3,ISO30,ISO40,BT40,BT50,ETC.You can use an indexable boring bar with a 12 mm shank to start the boring at the minimum diameter. The boring length should be LD3. If the boring bar is 12 mm, the boring depth should be limited to 36mm to avoid chattering.Boring Head 75 mm pack of 1
C-type Boring head Suitable 20 mm Boring ToolGraduation 1 Div. = .01 mmBoring Hole 20 mmOffset – 25mmBoring Capacity – 20 mm to 200 mmBack Thread – 1.5″ x 18 TPICan be used with different Shanks R8,MT2,MT3,ISO30,ISO40,BT40,BT50,ETC.You can use an indexable boring bar with a 20 mm shank to start the boring at the minimum diameter. The boring length should be LD3. If the boring bar is 20 mm, the boring depth should be limited to 60 mm to avoid chatter.Boring Head 75 mm pack of 1C-type Boring head Suitable 25 mm Boring ToolGraduation 1 Div. = .01 mmBoring Hole 25 mmOffset – 40mmBoring Capacity – 25 mm to 250 mmBack Thread – 1.5″ x 18 TPICan be used with different Shanks R8,MT2,MT3,ISO30,ISO40,BT40,BT50,ETC.You can use an indexable boring bar with a 25 mm shank to start the boring at the minimum diameter. Length of the boring should be LD3 if boring bar is 25 mm depth of boring should limit to 75 mm in order to escape chattering.Boring Head 100 mm pack of 1C-type Boring head Suitable 25 mm Boring ToolGraduation 1 Div. = .01 mmBoring Hole 25 mmOffset – 40mmBoring Capacity – 25 mm to 250 mmBack Thread – 1.5″ x 18 TPICan be used with different Shanks R8,MT2,MT3,ISO30,ISO40,BT40,BT50,ETC.You can use indexable boring bar with 25 mm shank to start minimum diameter of boring. Length of the boring should be LD3 if the boring bar is 25 mm, and the depth of boring should be limited to 75 mm in order to escape chattering.
