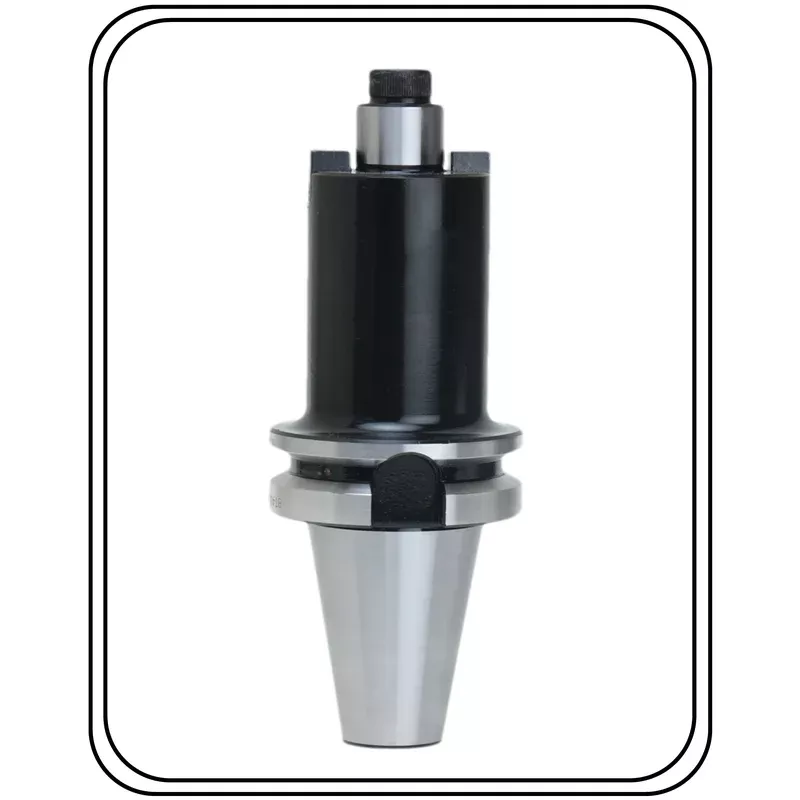

BT50 fma16 mm face milling holder arbour
BT50 face mill holder, also called the face mill arbour and face mill adaptor
BT50 FMA16 is mainly used to hold a Modular Indexable Cutter with an Internal hole of 16 mm. Any cutter can come with a 16 mm Internal thread, but usually, 40 mm Cutters are standard in this range.
Made from alloy steel hardened to 54 56rcBalanced to G6.3 at 12,000 rpmsConcentricity is less than .005 micron up to 100 Length and 0.012 up to 200 Length.All critical tool holder surfaces are precision-groundGage length is 70mm,100MM,150MM,200MM,250MM,300MMThe rear thread for the pull stud is M16 X 2.0
