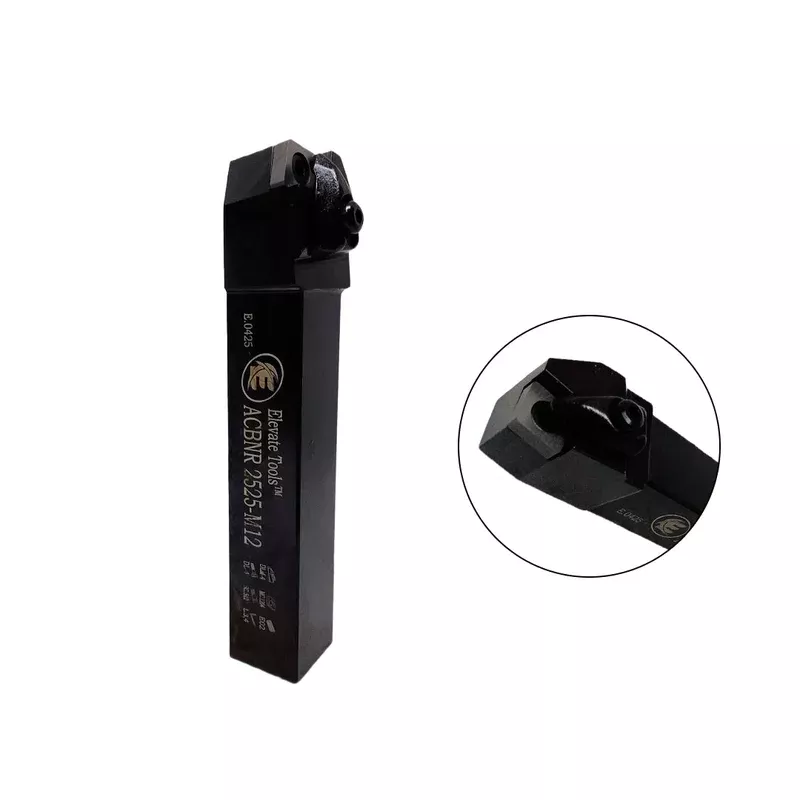

Model: ACBNR / ACBNL 2525-M12
Shank size: 25 25 mm (heavy-duty)
Insert type: CNMG 12 (CNMG 1204 series)
Hand type:
ACBNR Right-hand
ACBNL Left-hand
Overall length: ~150 mm
Geometry & Design
Negative insert holder (0 clearance) strong cutting edge
Approach angle: ~75 (better for angular/profiling work)
Insert shape: 80 diamond (C-type CNMG)
Clamping system: Double clamp / multi-lock high rigidity & accuracy .
