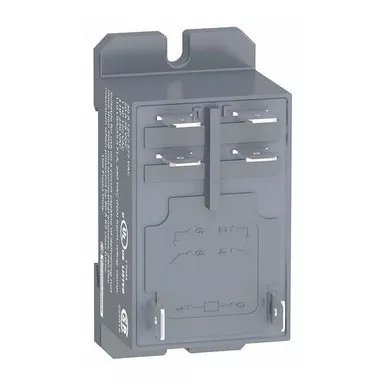

DIN Rail & Top Flange, Enclosed Power Relay, Square, 30 A, 8 Pins, TabRPF2BF7

Enclosed Power Relay, Base Shape Square, Coil Voltage 120V AC, Contact Form DPDT, Current Rating 30 A, Electrical Connection 1/4 in Tab Terminal, Flat Pin Width 0.25 in, Number of Pins 8, Sealing Sealed, Status Indicator No Indicator, Contact Rating (AC) 3 A @ 250/277V (NC), 30 A @ 250/277V (NO), Contact Rating (DC) 20 A @ 28V (NO), 25 A @ 28V (NO), 3 A @ 28V (NC), Horsepower @ 120V AC 1 hp, Horsepower @ 240V AC 3 hp, Mounting Style DIN Rail & Top Flange, Push-To-Test Method No Button
