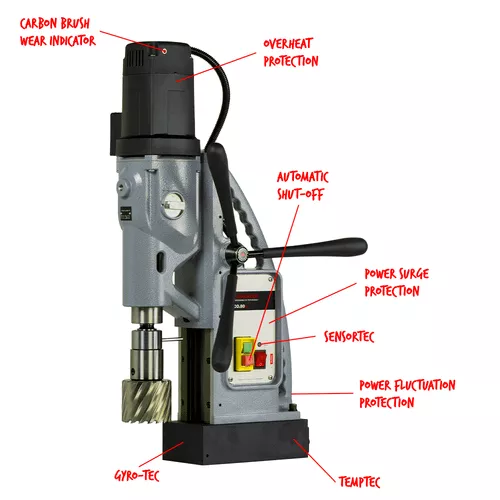

Thanks to its four-speed oil lubricated gearbox our portable Euroboor ECO.80S+ magnetic core drilling machine is able to tackle twist drilling tasks just as easily as big diameter annular cutter challenges. The innovative electronics in this magnetic core drilling machine offer more safety, significantly reduce the risk of damage of the machine, tool and workpiece and protects the user in case of excessive vibrations or sudden displacement. The lifespan is considerably longer and you avoid high maintenance costs.
Annular cutting Ø 7/16″ – 3 1/8″
Twist drilling Ø 1/16″ – 1 1/4″Countersinking Ø 3/8″ – 3 3/8″Length 14 3/8″Width 12 3/16″Height 20 1/16″ – 27 15/16″Stroke 10 1/4″Weight 60.2 lbsMagnet (l x w x h) 8 11/16″ x 4 5/16″ x 2 1/2″Magnetic force 6,615 lbsMotor power 15.4 ATotal power 16.4 ASpeed (no load) (I) 200 rpm(II) 300 rpm(III) 415 rpm(IV) 650 rpmSpeed (load 15.4 A) (I) 150 rpm(II) 200 rpm(III) 275 rpm(IV) 400 rpmSpindle (Weldon) MT3 3/4″Voltage 110 – 120 V / 60 Hz220 – 240 V / 50 – 60 Hz
