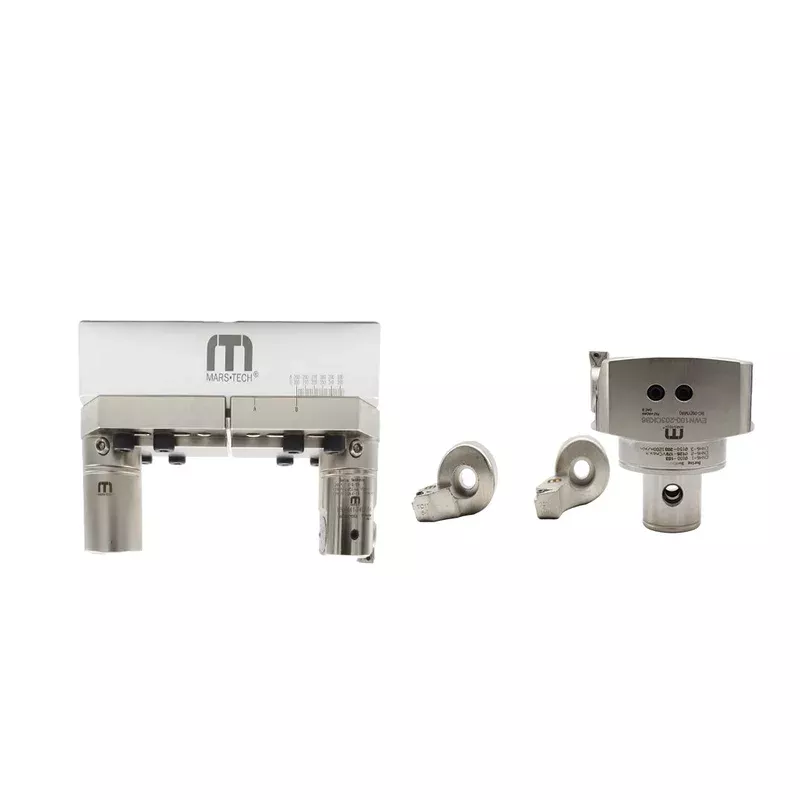

EWN100-203 fine boring head has a range of 100 mm to 153 mm. If you put the cartridge, you can increase the boring range with the same head
6-2 – 126 TO 179 MM Inclusive
6-3 – 150 TO 203 MM inclusive
Suitable insert is TCMT/TCGT 1102 Size (Inserts are bought separately)
EWN200-310 RANGE
Weight of the bar is 3.1 Kg ( holder not included)Boring bar minimum length is 117 mm
Suitable holder is the BST Type
EWN300-410
Suitable Insert is TCMT1102 (insert not included)
Weight of the bar is 3.9 Kg ( holder not included)Boring bar minimum length is 117 mm
Suitable holder is the BST Type
EWN400-510
Suitable Insert is TCMT1102 (insert not included)
Weight of the bar is 5.1 Kg ( holder not included)Boring bar minimum length is 121 mm
Suitable holder is the BST Type
EWN500-610
Suitable Insert is TCMT1102 (insert not included)
Weight of the bar is 5.9 Kg ( holder not included)Boring bar minimum length is 121 mm
Suitable holder is the BST Type
