Hubbell Wiring Device-Kellems SNAP5262WA

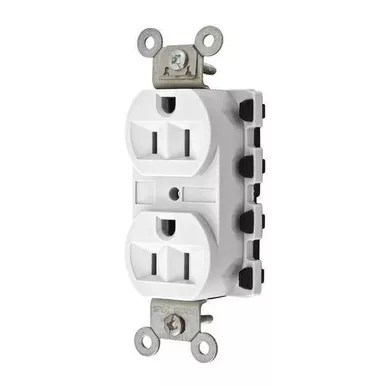

The HUBBELL 15A Duplex Modular Receptacle 125VAC 5-15R WH is a flush-mount duplex receptacle intended for modular wiring installations.Key Features of the HUBBELL 15A Duplex Modular Receptacle: Amperage/Voltage: Rated for 15 A, 125 VAC operationNEMA Configuration: NEMA 5-15R duplex outletWiring Method: Modular back-wired connection suitable for 12 AWG wireMounting Type: Flush mount with included mounting hardware; single gang configurationMaterial Construction: Nylon face and housing; brass contacts; galvanized steel mounting strapOperating Temperature Range: -40°C to +75°C (without impact)Dielectric Strength: Withstands minimum of 2,000V dielectric voltageAFCI/GFCI/Tamper /Surge Protection: Not applicable or not present on this modelCertifications & Standards: CSA Certified C22.2 No.42 File 285, Federal Specification W-C-596, NEMA WD-6, UL498 File E2186 compliant The HUBBELL 15A Duplex Modular Receptacle features SNAPConnect technology to support connectorized installation during rough-in and snap-in connection after wall completion.
