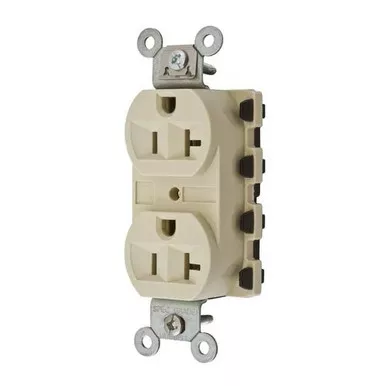

Hubbell Wiring Device-Kellems SNAP5362IA

The HUBBELL 20A Duplex Modular Receptacle 125VAC 5-20R IV is a duplex straight blade receptacle suitable for modular wiring installations.Key Features of the HUBBELL 20A Duplex Modular Receptacle: Amperage/Voltage: Rated for 20 A at 125 VAC with NEMA 5-20R configurationWiring Method: Modular back-wired connection using SNAPConnect systemMounting Type: Flush mount with included mounting hardwareMaterial Construction: Nylon face and housing; brass contacts; galvanized steel strap; stainless steel self-grounding stapleDielectric Strength: Withstands minimum of 2,000VOperating Temperature Range: -40°F to 167°F (maximum continuous use at 75°C)Circuit Configuration: Duplex outlet, single phase, polarized, grounded (2-pole/3-wire)Standards Compliance: CSA Certified C22.2 No.42 File 285; Federal Specification W-C-596; NEMA WD-6; UL Listed (UL498 File E2186) The HUBBELL connectorized device enables connectorized wiring during rough-in and snap-in terminal installation after wall completion.The modular design facilitates change-outs and connections without the need for traditional pigtail wiring.Audible snap feature indicates when connection is made during installation.
