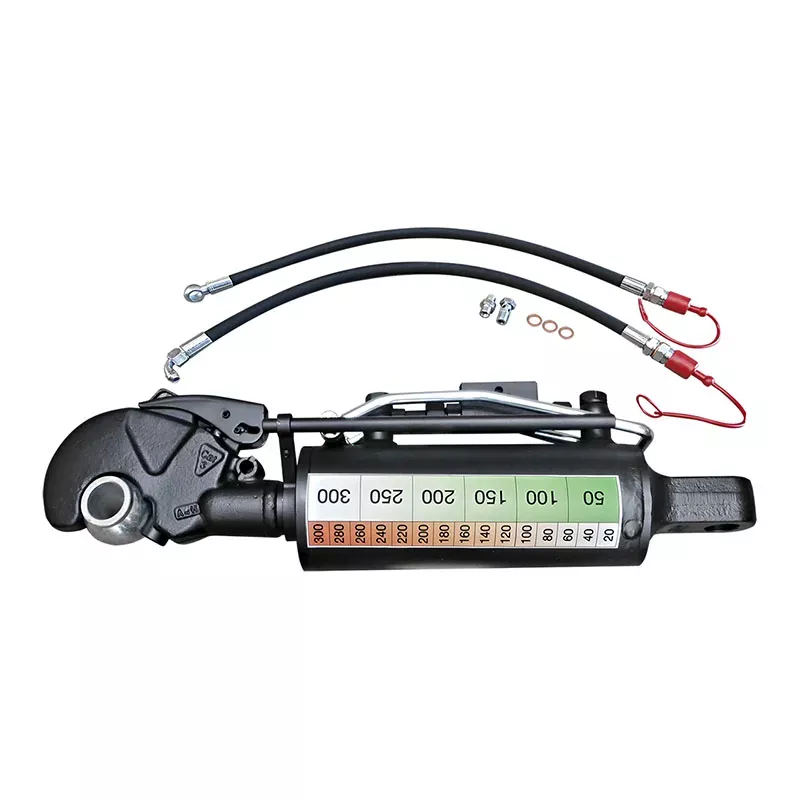

There’s nothing quite like adjusting your disc harrow angle or land plane position without leaving the tractor seat, especially when you’re working long days in the field. This Category 3 hydraulic top link with integrated control valve and handle puts that fingertip control right at your side, eliminating those back-breaking trips to manually crank a turnbuckle. Whether you’re fine-tuning cultivator depth on-the-go or keeping your heavy implement perfectly level across varying terrain, this hydraulic setup saves your back and keeps you productive.
What You’re Getting
- 505mm to 646mm adjustable length with 141mm of hydraulic stroke gives you plenty of range for different implements and working conditions
- Heavy-duty 90mm cylinder bore with 45mm piston provides the serious lifting power Category 3 implements demand
- Integrated control valve with handle lets you mount the control where you can easily reach it from the seat
- Hook and knuckle end design gives you secure connections that handle the forces from big implements
- Built for the heavy lifting that comes with large frame tractors typically running 80+ horsepower
Built for Real Farm Work
This hydraulic top link is sized for the big jobs—think pulling heavy disc harrows through corn stalks, running large chisel plows in tough ground, or grading with substantial box blades. It’s especially valuable when you’re working implements that need frequent adjustment, like maintaining consistent ripper depth in changing soil conditions or keeping cultivators level when moving between different fields. Dairy operations appreciate the control it provides for silage defacers and heavy scrapers, while row crop farmers love being able to adjust disc gang angles without stopping during critical spring fieldwork.
Made to Last
This isn’t some light-duty cylinder trying to do a Category 3 job. The 90mm bore and 45mm piston are properly sized to handle the massive forces that Category 3 implements generate. Whether you’re lifting a loaded scraper blade or holding a 20-foot disc at the perfect angle, this cylinder has the power and holding capacity to get it done. The heavy-wall construction resists bending under side loads, and quality seals keep working even after thousands of cycles in dusty, dirty farm conditions.
Installation Tips
Installing this hydraulic top link is straightforward, but take your time to route the hydraulic lines properly. The control valve with handle can be mounted on your cab or fender where you can easily reach it from the operator’s seat. Connect to your tractor’s remote hydraulics or add a diverter valve if you need to share a circuit. Here’s a helpful tip: mark common working positions on the cylinder shaft for different implements—a piece of tape or paint mark shows you exactly where to set it for each tool. Always relieve hydraulic pressure before disconnecting implements, as trapped pressure makes reconnection nearly impossible.
