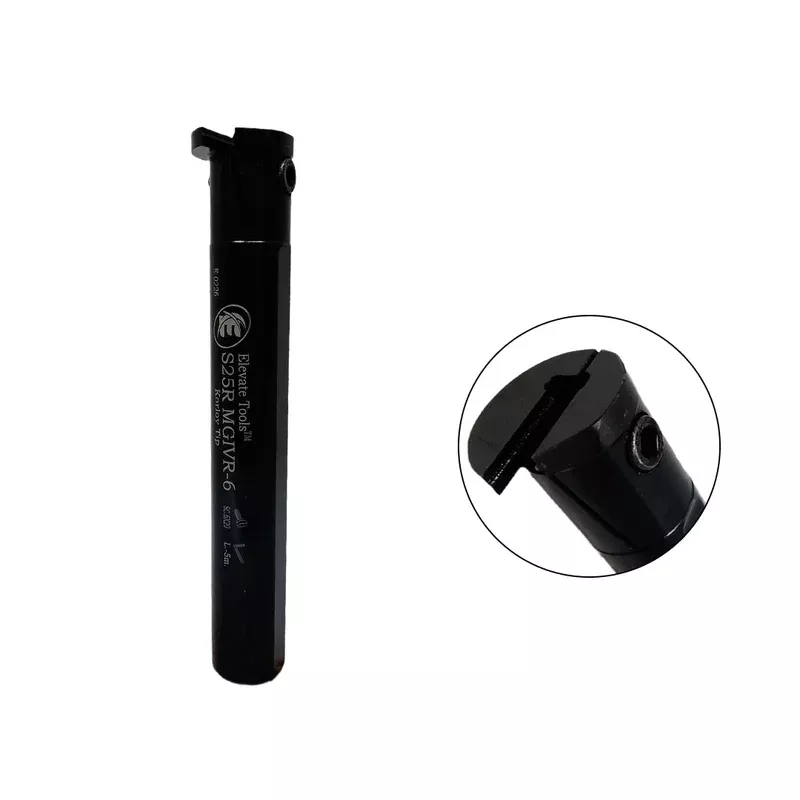

Type: Internal grooving + turning + profiling holder (MGT system)
Shank size: S25R (25 mm shank heavy-duty, very high rigidity)
Insert size:
6 mm grooving insert (wide groove / heavy cut application)
Cutting width range (system):
MGIVR/L supports 1.5 mm to 8 mm
Application:
Internal grooving (wide grooves)
Internal turning
Profiling/relief machining
Max grooving depth (T-max):
Approx. up to 12 mm (depends on insert size)
Minimum bore diameter:
Around 30 mm+ (for S25R size tools)
Insert system:
MGMN / MRMN series
Double cutting edge cost-effective & longer life
Rigidity & performance:
25 mm bar very strong, low vibration
Suitable for heavy cutting & deep ID grooving
Chip control:
Good chip evacuation even in wide grooves
Surface finish:
Stable cutting consistent finish in large grooves
Hand:
Available in Right (R) / Left (L).
