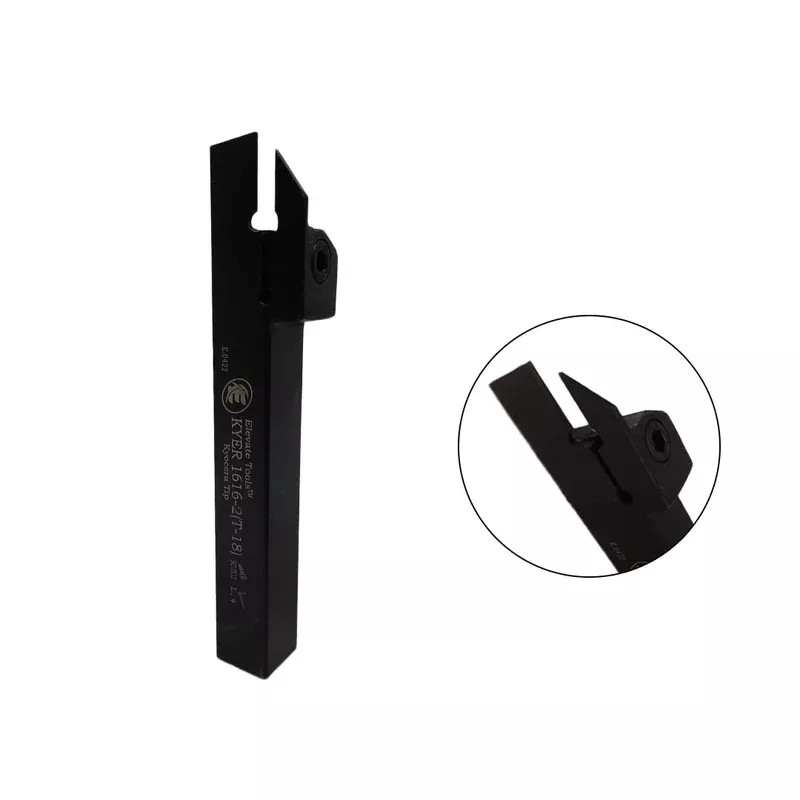

External grooving holder (Right/Left hand KYER/L series)
Shank size: 1616 mm, standard compact holder for CNC lathes
Groove width: 2 mm insert compatibility (GD / GDM / GDG type inserts)
Suitable for T-18 depth range (max cutting depth up to 18 mm)
Overall length: ~120 mm, balanced for rigidity & reach
Multi-application tool grooving, parting-off, turning & profiling
Strong screw clamping system improved insert holding force & accuracy
Advanced chipbreaker compatibility smooth chip control in different materials
Rigid steel body stable cutting & reduced vibration
Coating support (MEGACOAT inserts) long tool life & high efficiency
Suitable for steel, stainless steel, cast iron machining
Ideal for medium-depth grooving & parting (2 mm width applications).
