Technical Specifications
General

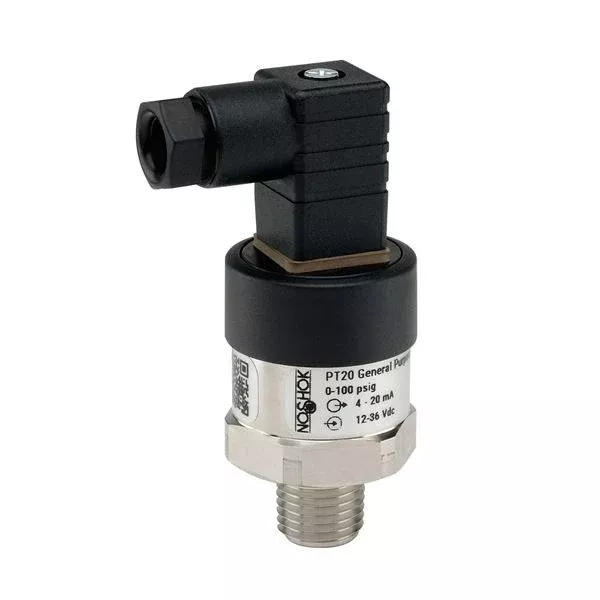

| Product Series | PT20 General Purpose Fixed Range Pressure Transmitter |
|---|---|
| Accuracy | ±0.5% of span, non-linearity best fit straight line per IEC 61298-2 at reference conditions |
| Output Signal | 4 mA to 20 mA, 2-wire |
| Power Requirement | 8 Vdc to 30 Vdc |
| Brand | NOSHOK |
| Manufacturer Part | PT20-300PSIG-1-1-8-7 |
| Size | 1/2″ |
| Country of Origin | Made in the United States |
Materials & Construction
| Materials of Construction (Wetted Parts) | 316 Stainless Steel with 316 Stainless Steel housing |
|---|
Performance
| Pressure Range | 0 to 300 psi gauge |
|---|---|
| Environmental Rating | IP65 |
| Media Temperature Range | 32 to 176 ºF / 0 to 80 ºC |
Connections
| Process Connection | 1/2 NPT Male |
|---|---|
| Electrical Connection | DIN form C |
