Technical Specifications
General

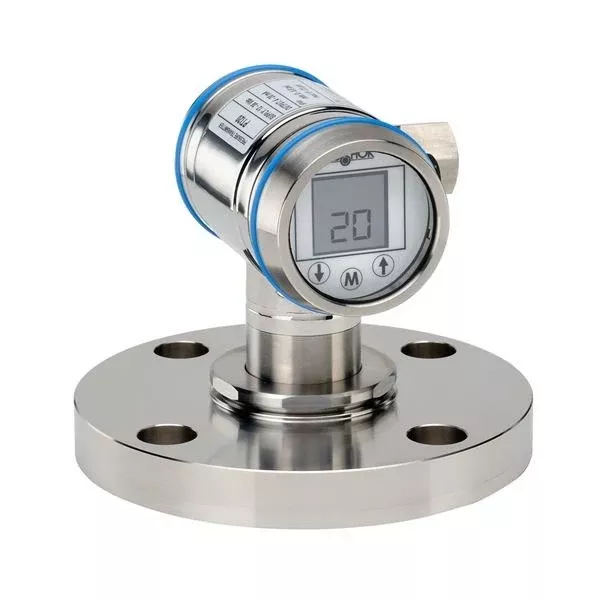

| Product Series | PTI20 Intelligent Pressure Transmitter |
|---|---|
| Accuracy | ±0.2% of adjusted span with 4:1 turn down |
| Output Signal | 4 mA to 20 mA, 2-Wire |
| Power Requirement | 12 Vdc to 36 Vdc |
| Stability | <0.1%/year |
| Adjustment | By 3 push buttons on display or optional HART® protocol |
| Response Time | <100 ms |
| Service Life | >10 yr |
| Measuring Element | 316 Stainless Steel (Hastelloy C or Tantalum optional) |
| Brand | NOSHOK |
| Manufacturer Part | NOSHOK PTI20 290-1160psig Pressure Transmitter Thr |
| Country of Origin | Made in the United States |
Materials & Construction
| Materials of Construction (Wetted Parts) | 316 Stainless Steel with 304 Stainless Steel housing |
|---|
Performance
| Pressure Range | Min. span 290 psi, max. span 1,160 psi (lowest vacuum pressure -15 psig) |
|---|---|
| Environmental Rating | IP66 |
| Media Temperature Range | -4 to 176 ºF / -20 to 80 ºC |
| Ambient Temperature Range | -4 to 158 ºF / -20 to 70 ºC |
| Flange Temperature Range | -4 to 212 ºF / -20 to 100 ºC |
Connections
| Process Connection | Threaded Flush Diaphragm for Flange |
|---|---|
| Electrical Connection | M12 x 1 4 pin |
| Connection Material | 316 Stainless Steel |
Dimensions & Weight
| Approximate Weight | 3.3 lb |
|---|
