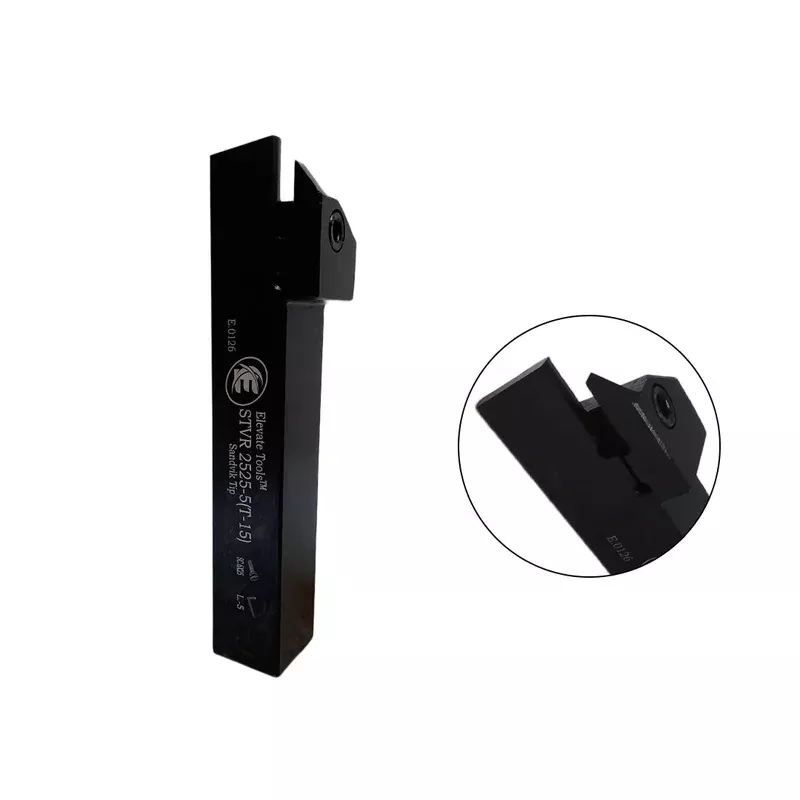

Tool type: External OD grooving holder (Right / Left hand STVR / STVL)
Shank size: 25 25 mm square (high rigidity, stable machining)
Insert system: Sandvik Coromant CoroCut / T-Max Q-Cut (indexable grooving system)
Insert size: -5 approx. 5 mm groove width class (heavy grooving range)
Grooving range:
T-15 / T-20 / T-25 / T-30 / T-35
Covers medium to large OD diameters
Application:
OD / external grooving
Parting-off operations
Wide & deep grooving (heavy-duty cutting)
Clamping system: Screw / top clamp (secure insert holding & accuracy)
Cutting direction: Available in Right-hand & Left-hand.
