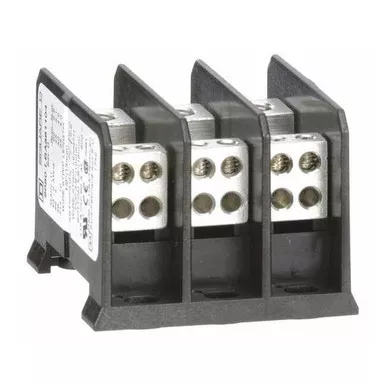

Linergy power distribution blocks are for terminating wires and are designed to NEMA standards. This three pole block has one lug opening on the line (main) side and four lug openings on the load (branch) side. The line side lug is rated to accept one 14 to 2 copper or aluminum wire. Each load side lug is rated to accept one 18 to 10 copper or aluminum wire. The lugs are made of aluminum. The lugs are rated for 115 amperes with copper wire and 90 amperes with aluminum wire. The lugs are rated to 600 volts. The housing is made of high impact . These Linergy power distribution blocks are UL component recognized and CSA certified.
