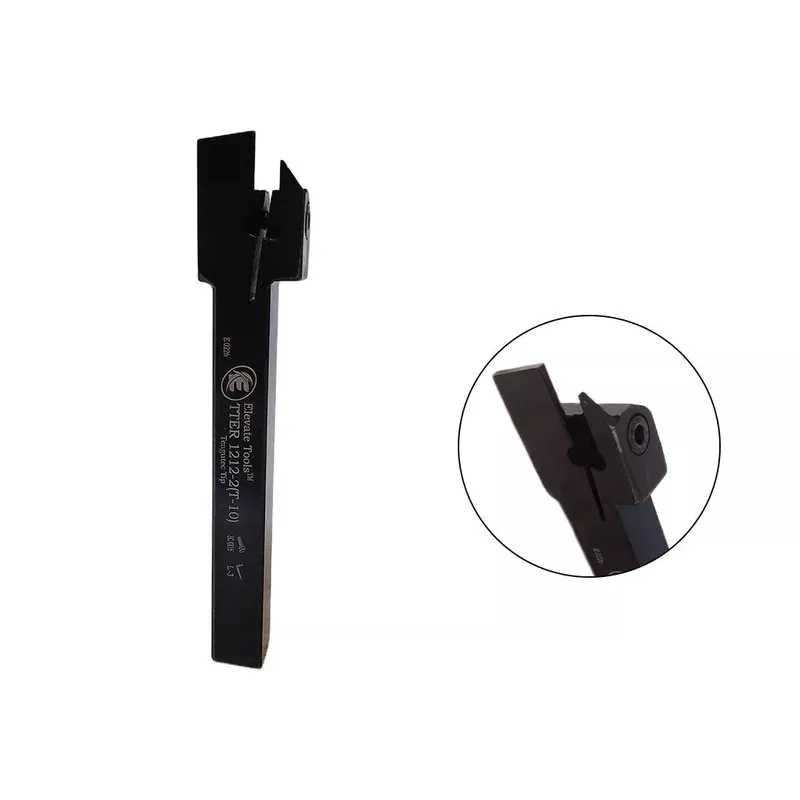

Holder size: 12 12 mm shank (compact, for small CNC / light machines)
Type: External OD grooving & parting holder (TTER/L series reinforced design)
Insert width: 2 mm (designation -2)
Grooving depth:
T-10 up to 10 mm
T-15 up to 15 mm
Insert system: TDXU / TDC / TDJ type inserts (seat size 2)
Clamping: Top clamp (T-Clamp system) rigid and secure holding
Application:
External grooving
Parting-off
Light turning / profiling
Overall length: ~125 mm (standard compact holder)
Material: Hardened steel body for vibration resistance
Coolant: Standard type (generally without internal coolant)
Hand: Available in Right (R) and Left (L).
