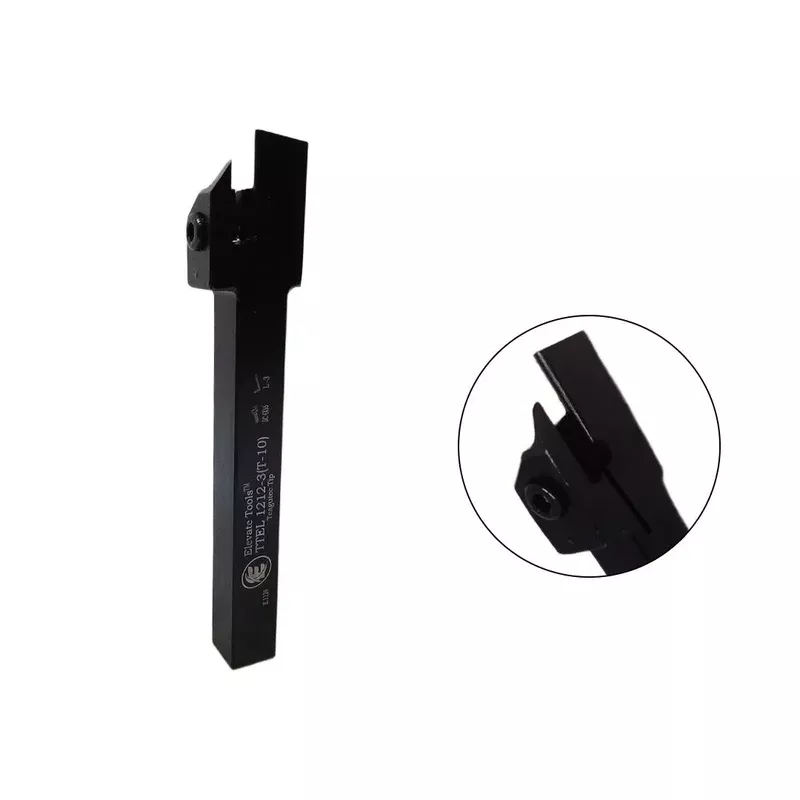

Type: External OD grooving & parting holder (TTER/L series)
Insert width: 3 mm (designation -3)
Grooving depth:
T-10: up to ~10 mm
T-15: up to ~15 mm (range-based holder capacity)
Insert system: Compatible with TDC / TDGX / TDGU type inserts (wide range selection)
Clamping system: Top clamp (T-Clamp)
Secure insert holding
High repeatability & accuracy
Application:
External grooving
Parting-off
Groove turning / light profiling
Material: Hardened / quenched steel body
High rigidity
Vibration damping
Coolant: Standard type (generally no internal coolant)
Hand: Available in Right (R) & Left (L).
