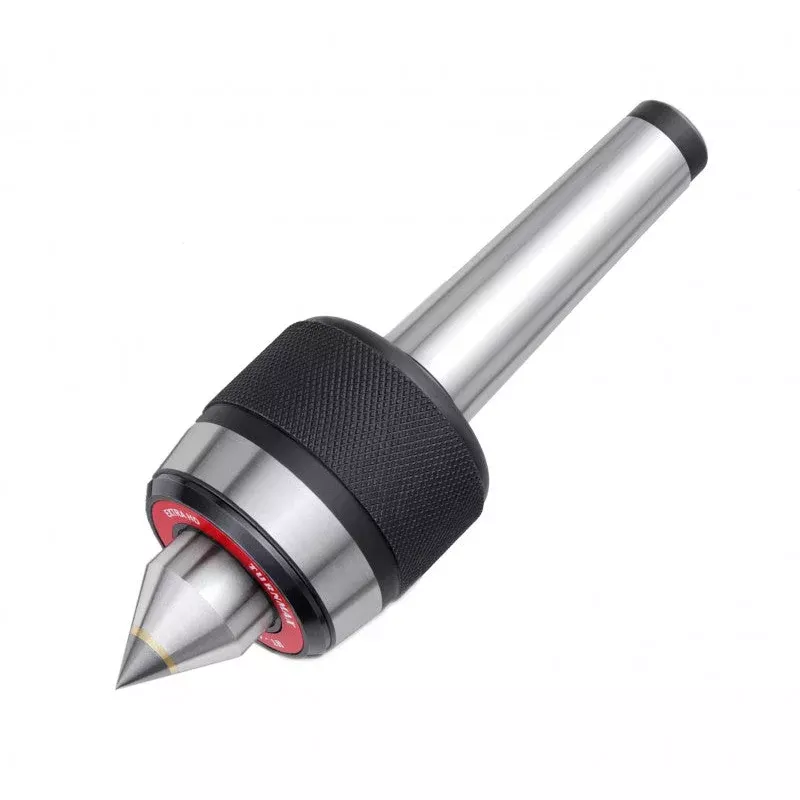

Extra Heavy Duty Carbide Tipped Revolving Centers are high-performance live centers specially designed for heavy load, low-speed machining, and continuous industrial use. These centers combine a robust body design with a carbide tip, making them ideal for demanding turning applications.
Product Overview
- Designed for conventional and slow-speed lathe machines
- Equipped with carbide tipped point for superior wear resistance
- Built with extra heavy duty body construction
- Available in MT-3, MT-4, MT-5, MT-6 tapers
- Suitable for high load and long workpieces
Key Features
- Extra Heavy Duty Construction
- Stronger and bulkier design compared to standard models
- Capable of handling very high job weights (up to 2000 kg depending on MT size)
Carbide Tipped Point
- High hardness carbide tip ensures long life and wear resistance
- Ideal for machining hard materials and continuous production work
Four Bearing System
- Equipped with 4 precision bearings (ball + thrust type) for better load distribution
- Ensures smooth rotation and reduced vibration
High Accuracy
- Standard runout accuracy up to 0.015 mm
- Super precision models available up to 0.008 mm on request
Sealed & Durable Design
- Protection against dust, coolant, and chips
- Long service life with minimal maintenance
Applications
- Heavy-duty shaft turning
- Large and long workpiece support
- Forging, casting, and fabrication industries
- Continuous production machining
