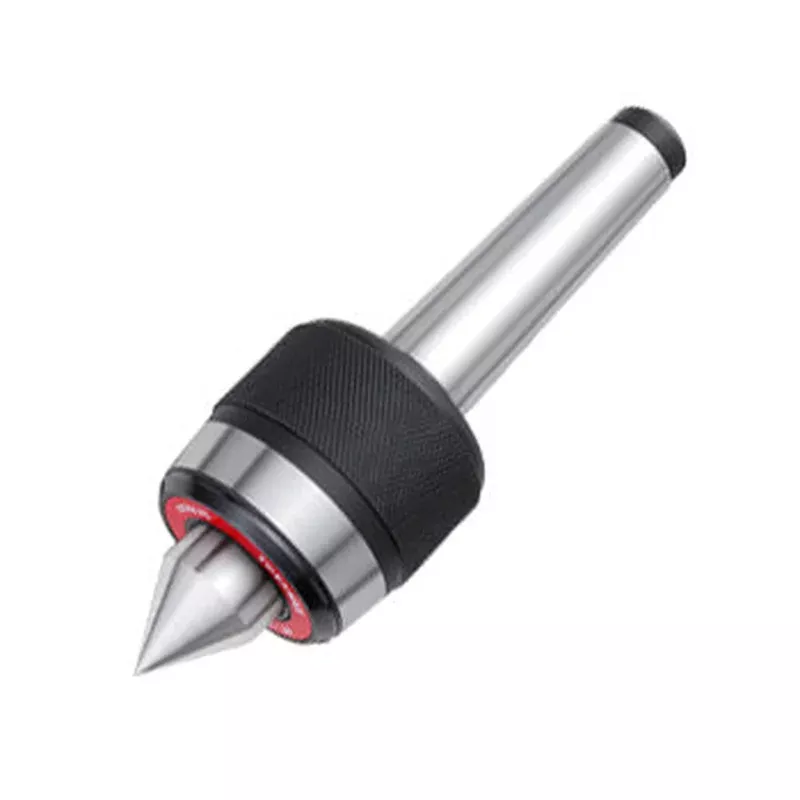

The Turnmax Slow Speed Revolving Center Extra Heavy Duty is specially designed for conventional and slow-speed lathe operations, where high load capacity and durability are essential. Built with a rugged structure and enhanced bearing support, it ensures stable performance during heavy machining applications.
This extra heavy duty revolving center features a reinforced body and precision-engineered components, making it suitable for handling large and heavy workpieces. It is primarily used in non-CNC applications where low-speed rotation with high load is required.
Key Features
- Extra Heavy Duty Construction
- Stronger and more rigid design compared to standard models, ideal for heavy-duty turning operations.
- Four Bearing System (Enhanced Stability)
- Equipped with multiple bearings to provide better load distribution and smooth rotation under heavy loads.
- High Load Carrying Capacity
- Capable of handling jobs ranging from 350 kg to 2000 kg depending on taper size.
- Precision Accuracy
- Standard models offer runout accuracy up to 0.015 mm, ensuring reliable machining performance.
- Optional Super Precision Version
- Available on request with improved runout accuracy up to 0.008 mm under no-load conditions.
- Multiple Taper Sizes
- Available in MT3, MT4, MT5, MT6, making it compatible with a wide range of conventional lathes.
Technical Highlights
- Application: Conventional / slow speed lathe machines
- Design Type: Extra Heavy Duty (Non-CNC)
- Bearing Type: Multi-bearing (Four bearing system)
- Runout Accuracy:
- Standard: 0.015 mm
- Super Precision: 0.008 mm (optional)
- Maximum Job Weight: Up to 2000 kg
Applications
- Heavy shaft turning
- Large diameter job support
- Fabrication and repair workshops
- General engineering industries
- Low-speed, high-load machining operations
