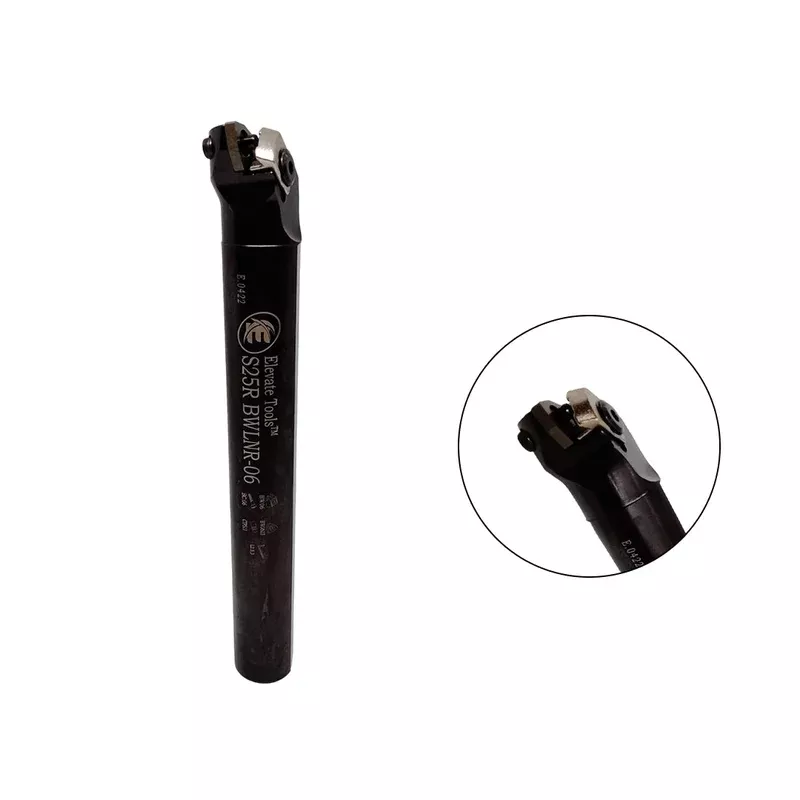

A WNMG 25 mm boring bar (BWLNR/L-06) is a heavy-duty internal turning tool holder used on CNC/lathe machines for boring, internal facing, and step machining with WNMG 06 carbide inserts.
Shank Diameter: 25 mm
Insert Type: WNMG 06
Approach Angle: ~95
Minimum Bore Diameter: ~32 mm
Overall Length: ~200250 mm
Material: Solid alloy steel
Clamping Type: Usually double clamp / lever lock (depends on model)
Coolant: Available with or without through coolant.
